MessageTypes with Parameter

It is often useful not only to inform Receivers that a Message of a certain type has been sent, but also to send data along with the Message. Receivers can then process this data upon reception of the Message.

Creating a MessageType with Parameter

Using the Editor

The recommended way is to create new MessageTypes via the context menu in the editor project view.

  1. in the project view: navigate to the folder where you want to create the new MessageType
  2. in the project view: right click inside the folder
  3. in the context menu: navigate to Create > GlobalMessage > MessageType with Param
  4. name the new file according to your new MessageType name. This will create your MessageType with int as the default parameter type.

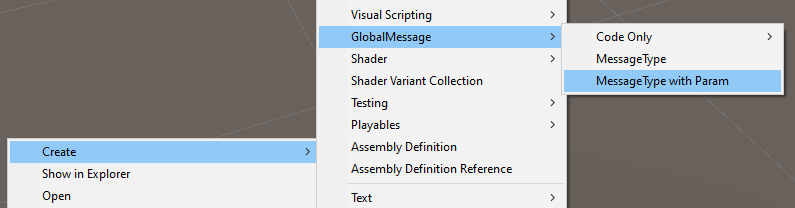

Creating a new Message with parameter via context menu

  1. to change the parameter type, open your MessageType's C# script file. Change the generic parameter inside the class declaration from int to your desired parameter type
  2. the final declaration of your MessageType should read like this: public class YourMessageType : MessageType<YourParamType>

From Code

  1. create a new class that derives from MessageType<T>
  2. set the generic parameter type to your desired parameter type

Here is a complete example of a MessageType with bool as its parameter type. EditorSettings are optional but good practice.

using MalteHusung.GlobalMessage;

[MessageTypeEditorSettings(Description = "This is my new MessageType with bool as parameter.", UseEditorFeatures = true, UseEditorMessageObject = true)]
public class NewMessageType : MessageType<bool>
{

}

Supported Parameter Types for Full Editor Integration

GlobalMessage offers many tools to easily interact with the system via the Editor. Most of them work directly out of the box for every MessageType you create. However for Sending Messages via Editor and Sending Messages via Component, not all parameter types are supported. If you want to use these features, the parameter type has to follow the Unity Serialization Rules. The following types are supported:

  • custom serializable class and struct
  • enum
    • numeric type has to be int (default) or byte.
    • Make sure your default value has the numeric value 0 assigned.
  • int
  • float
  • bool
  • string
  • Vector2
  • Vector3
  • Quaternion
Note

If you want to use any other type that is serialized by Unity, you can wrap it in a custom serializable class or struct.

Renaming Parameter Types

Generally, it is recommended to avoid renaming the parameter type whenever possible as the serialized data of MessageSender components can easily get corrupted if done wrong.

However, if renaming is really necessary, decorate your type declaration with the MovedFrom attribute (UnityEngine.Scripting.APIUpdating.MovedFromAttribute) before you perform the renaming via your IDE's rename functionality. This way, all serialized data should stay valid.

Note

Info about renaming your MessageTypes can be found here.
